• Forward and reverse characteristics of Ge, Si diodes and LEDs, The experimental set-up consists of the following: CRO Display, 1. Diodes: Rectifier-4007 (Si), Signal diode-1N34 (Ge), Zener.
Model DCBC-01
01 / 04
Overview

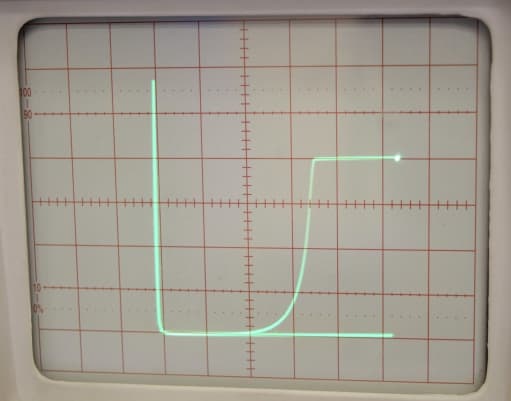

experiments that may be performed with it. The experimental set-up consists of the following: CRO Display 1. Diodes: Rectifier-4007 (Si), Signal diode-1N34 (Ge), Zener 4.7V, LED and transistor BC-109 2. 3½ digit DPM which can measure diode voltage and current through op-amp circuit. This provides near ideal measurements. 3. Circuit to display forward/reverse characteristics of the diodes on a double trace CRO. 4. IC regulated internal power supplies The experimental set-up is complete in all respect, except a measuring CRO. Graph
Specifications
Technical data
Model
DCBC-01
Manufacturer
SVS Labs
Applications
Used in physics and electronics laboratories for diode characteristics & boltzman constant-related experiments.
Suitable for undergraduate teaching, postgraduate coursework, and research projects.
Compact bench-top design fits standard laboratory benches and demonstration setups.
Features
• Forward and reverse characteristics of Ge, Si diodes and LEDs
The experimental set-up consists of the following: CRO Display
1. Diodes: Rectifier-4007 (Si), Signal diode-1N34 (Ge), Zener
Quick inquiry
Lock in a quote for Diode Characteristics & Boltzman Constant (DCBC-01).
Fill the form — we’ll respond with a proforma invoice, INCOTERMS variations and lead-time within one business day.
