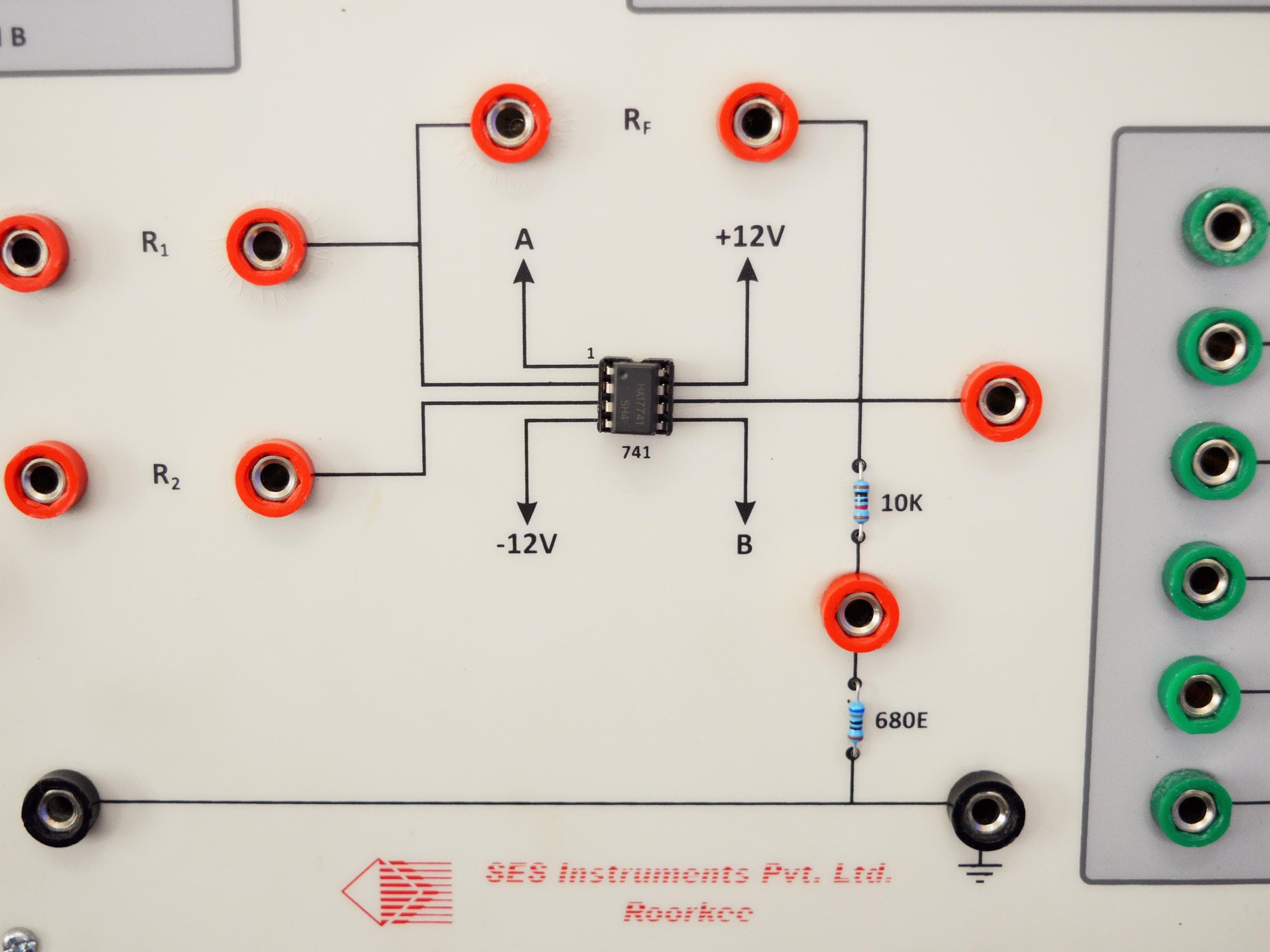

Inverting, non-inverting, summing and difference amplifier studies on a single board.
Model 741-01
01 / 04
Overview

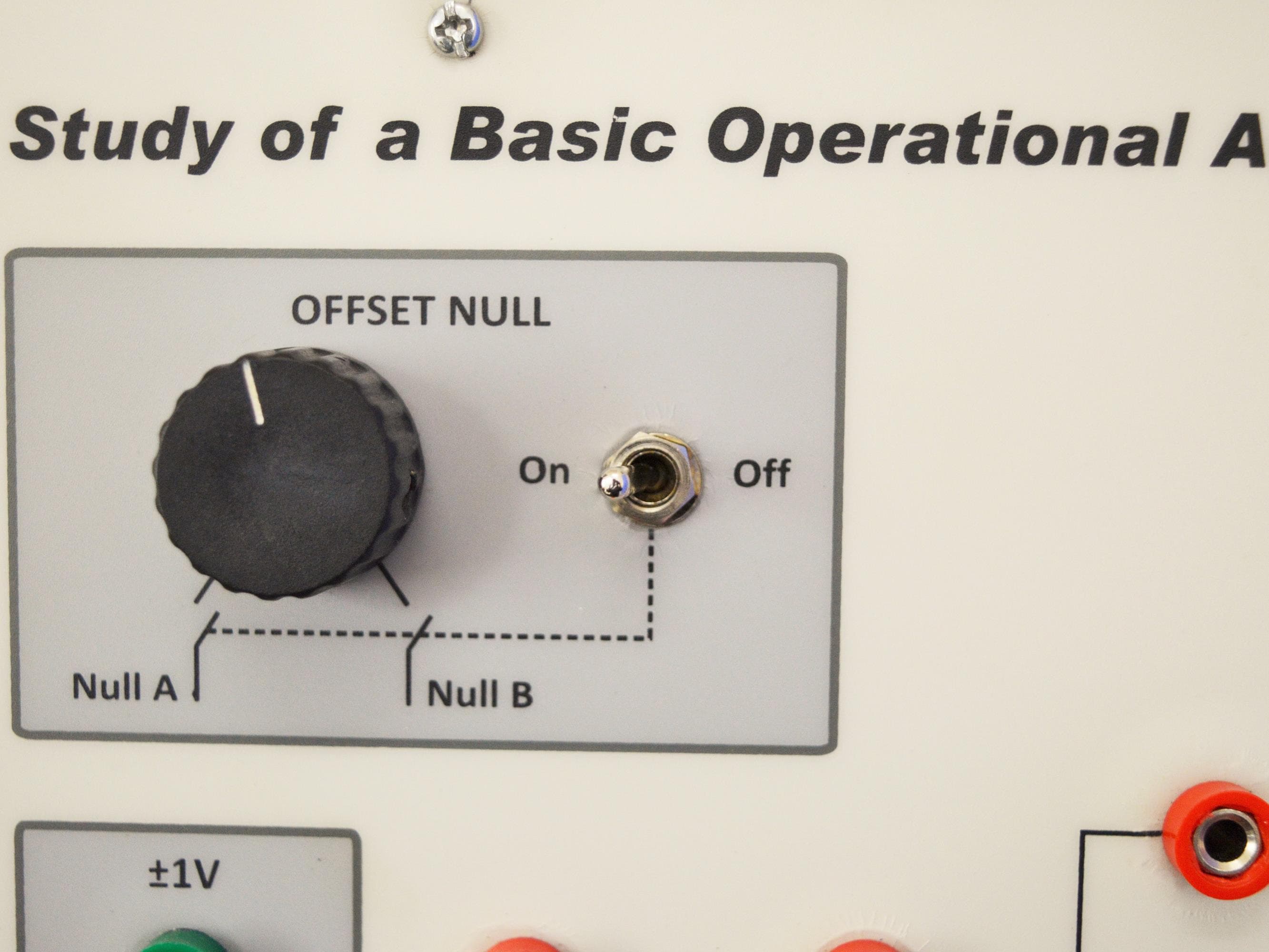

Working of the basic circuit. Measurement of basic currents, offset currents and offset voltage. Study of inverting and non-inverting amplifier configuration. Introduction to amplifier drift. Measurement of CMRR and slew rate. Built-in power supply.
Specifications
Technical data
Model
741-01
Manufacturer
SVS Labs
Category
Educational Laboratory Equipment
Operating environment
10–40 °C, RH ≤ 80%
Applications
Classroom electronics and analog circuit education
Hands-on amplifier, filter and oscillator experiments
Features
Self-contained boards
Banana-socket I/O
Manual & worksheets
Quick inquiry
Lock in a quote for Operational Amplifier Characteristics (741).
Fill the form — we’ll respond with a proforma invoice, INCOTERMS variations and lead-time within one business day.
