Design and verify low-pass, high-pass, band-pass and notch active filters.
Model AF-01
01 / 04
Overview

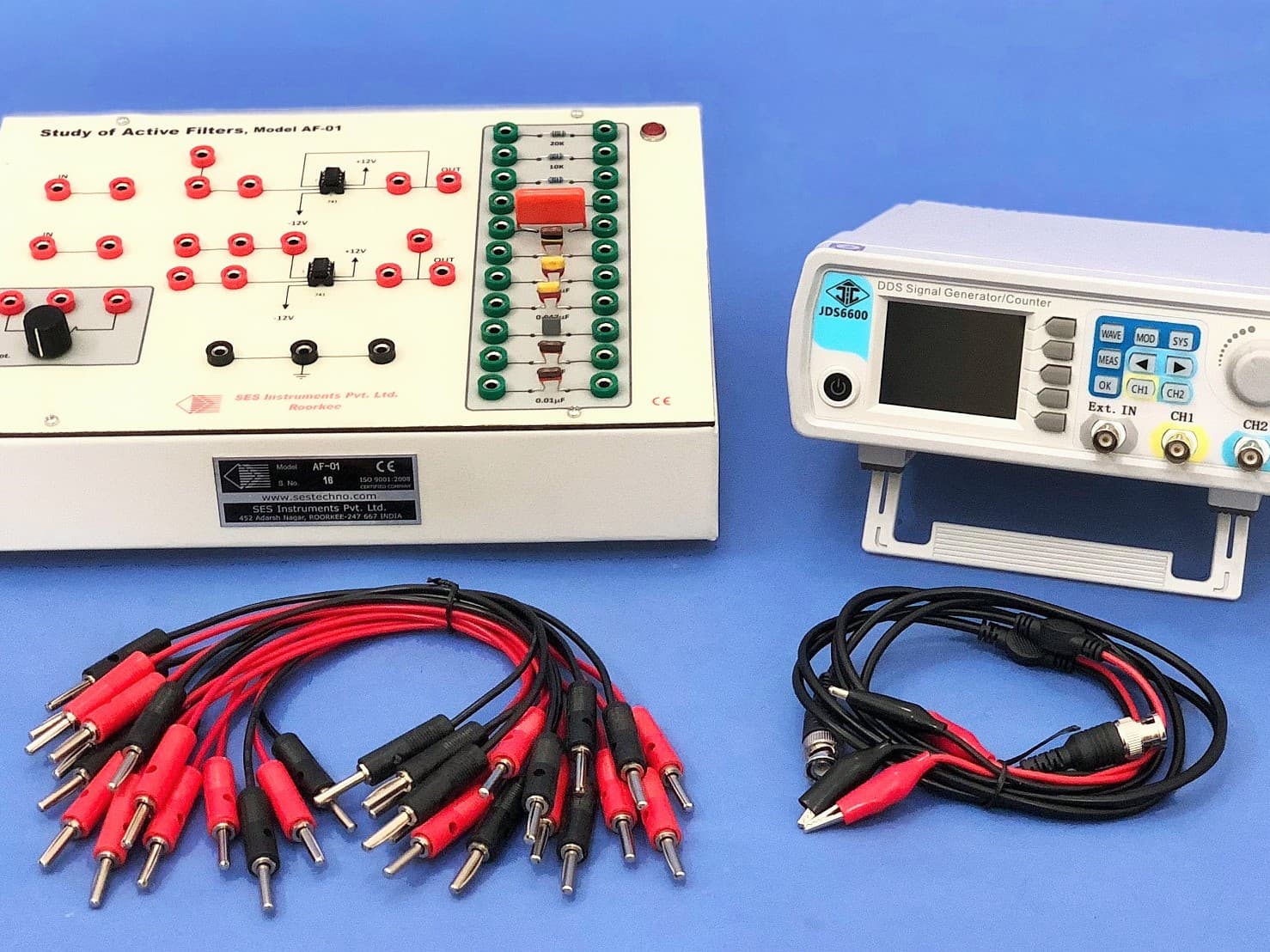

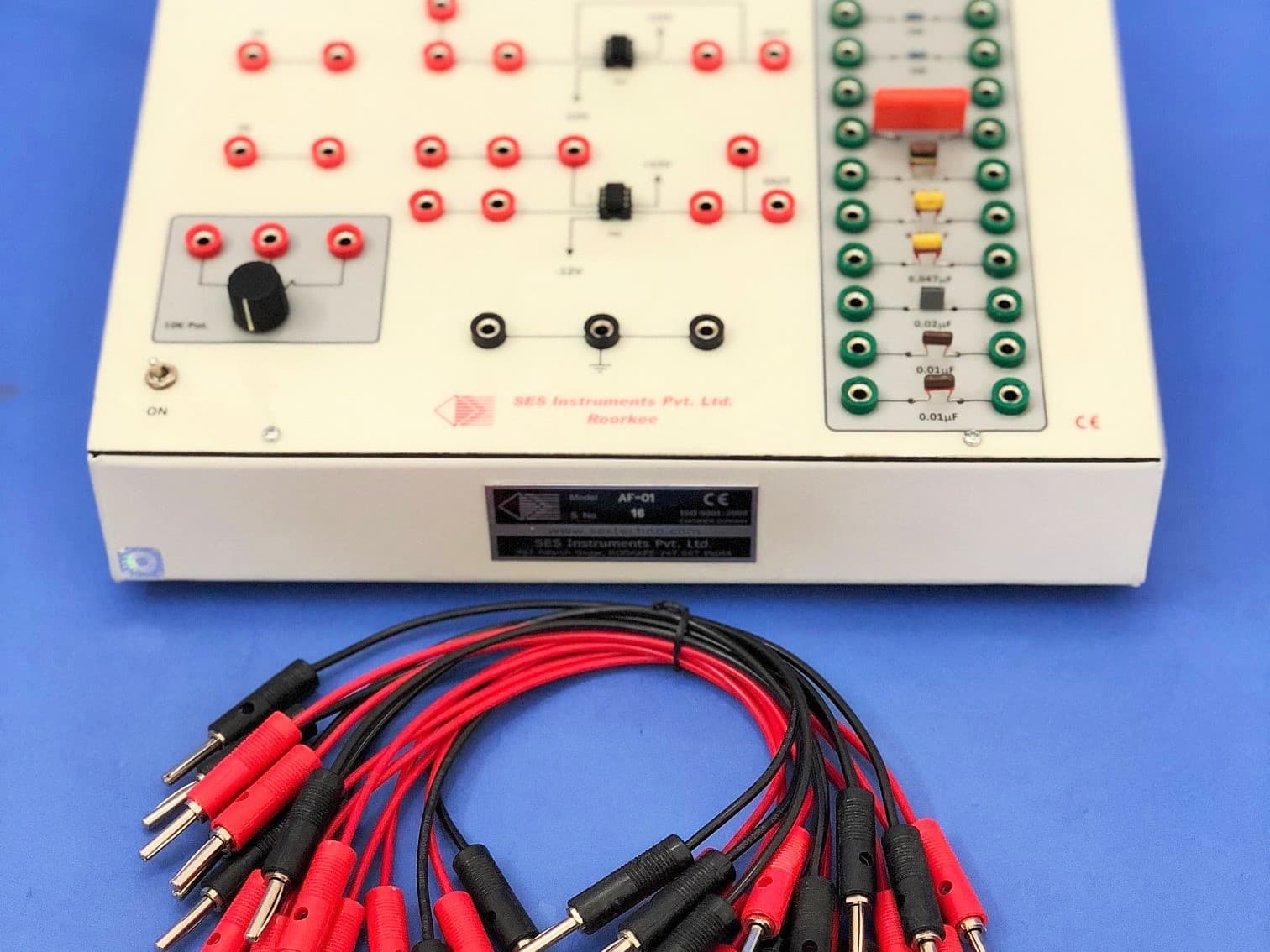

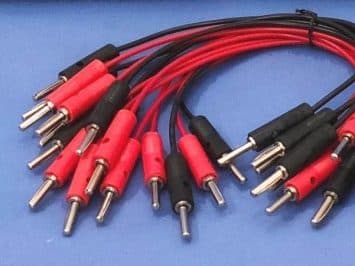

Frequency response studies of various active filter circuits using operational amplifiers – Low/ High pass, Twin-T, Bass a pass etc. All necessary components are available on the panel. Built-in power supply. Patch cords and user manual included. Accessory require (i) Function Generator (ii) Dual trace oscilloscope.
Specifications
Technical data
Model
AF-01
Manufacturer
SVS Labs
Category
Educational Laboratory Equipment
Operating environment
10–40 °C, RH ≤ 80%
Applications
Classroom electronics and analog circuit education
Hands-on amplifier, filter and oscillator experiments
Features
Self-contained boards
Banana-socket I/O
Manual & worksheets
Quick inquiry
Lock in a quote for Active Filter Study.
Fill the form — we’ll respond with a proforma invoice, INCOTERMS variations and lead-time within one business day.
Related instruments
Other instruments in Educational Laboratory Equipment.
