Electromagnet & Constant Current Power Supply (EMU-75 + DPS-175-C2)
Lab electromagnet with USB-interfaced constant-current power supply. Up to 11 KG field.
Model EMU-75 + DPS-175-C2
01 / 04
Overview

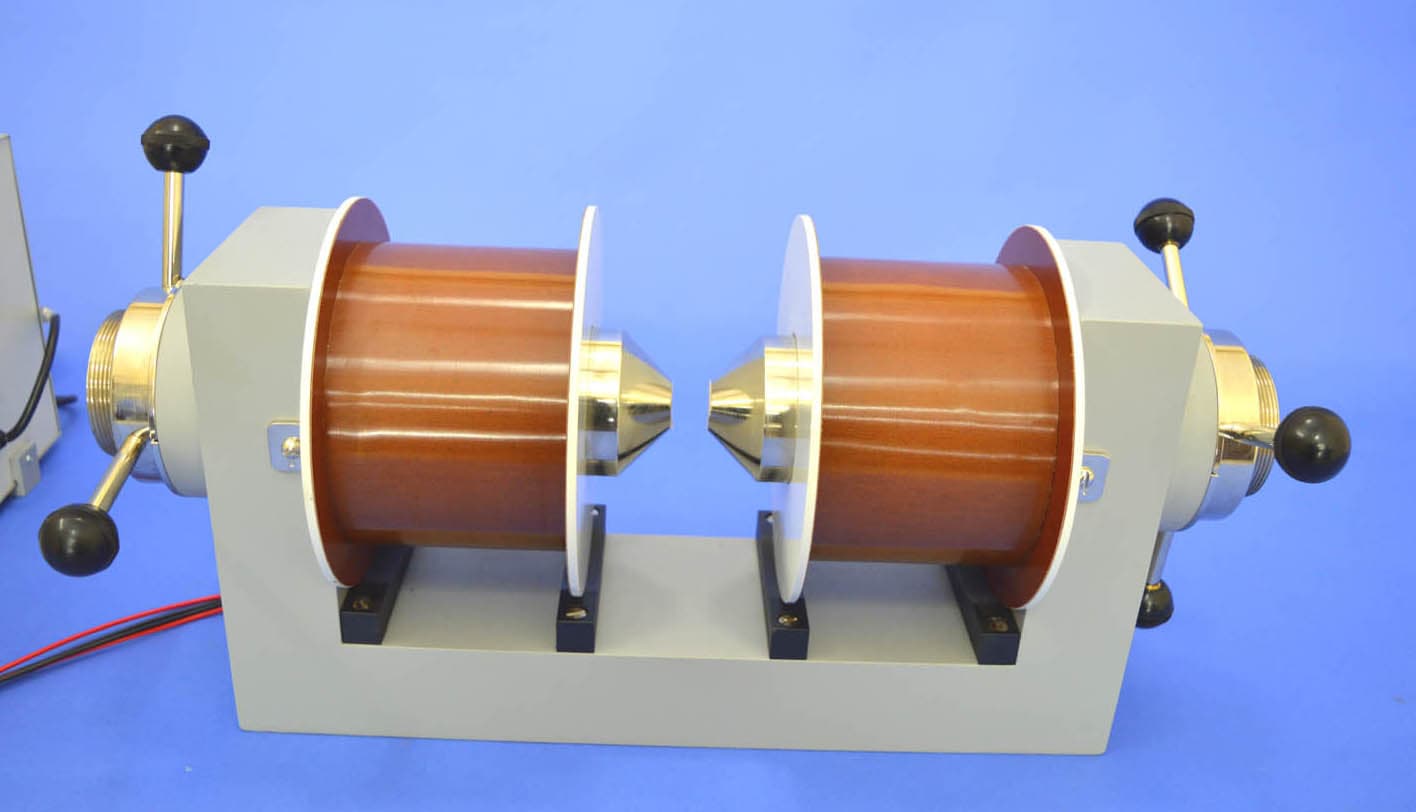

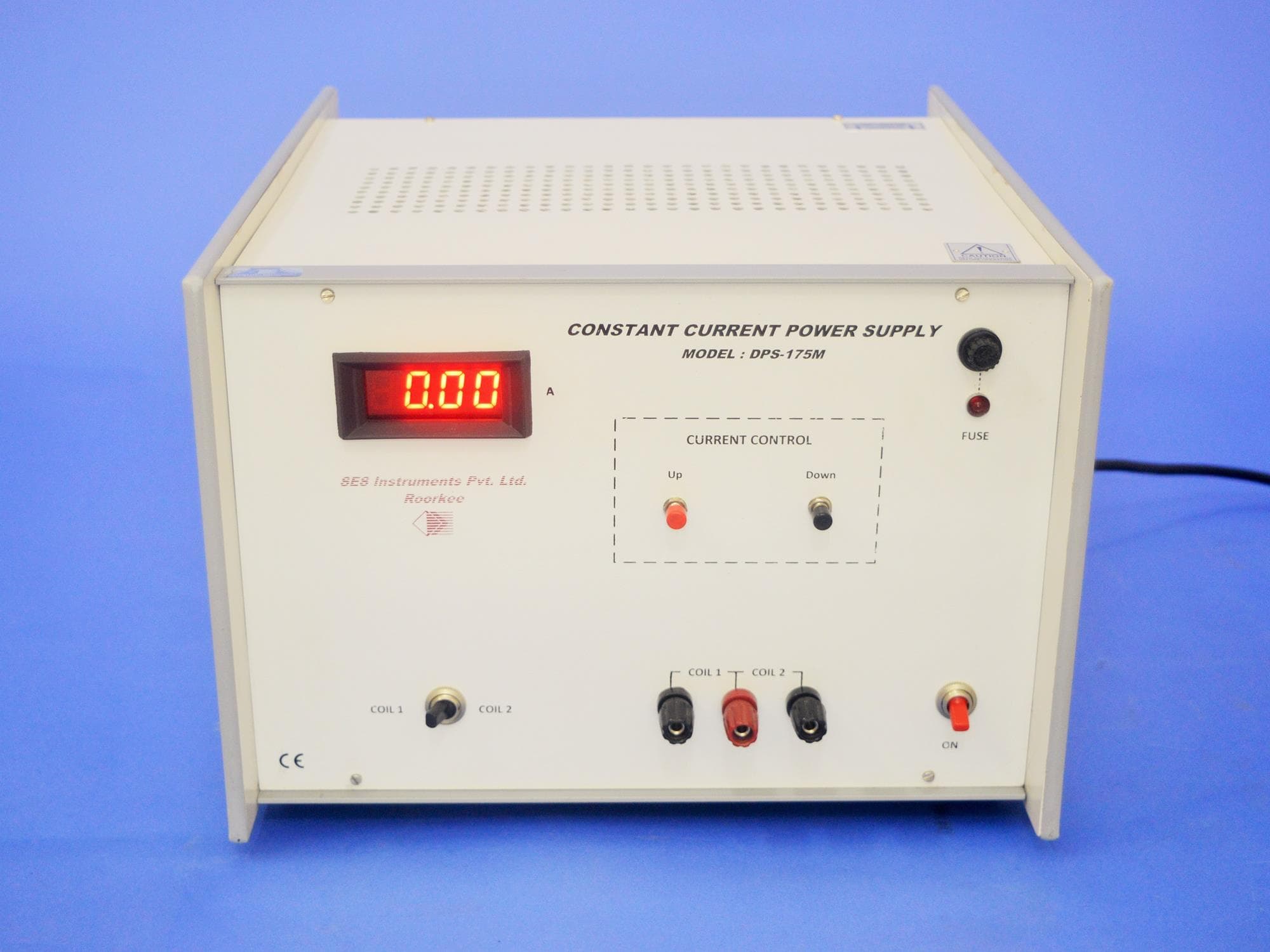

Research-grade lab electromagnet (EMU-75) paired with a USB-controlled constant-current power supply (DPS-175-C2). Produces magnetic fields up to 11 KG at 10 mm air-gap. Includes DACC + CAMM Windows software for automated field sweeps. Download the brochure for full specifications and application notes.
Specifications
Technical data
Model
EMU-75 + DPS-175-C2
Manufacturer
SVS Labs
Field Intensity
Up to 11 KG at 10 mm air-gap
Computer Interface
USB (DACC + CAMM Windows software included)
Applications
Hall effect, magnetoresistance and VSM experiments at postgraduate and research level.
PC-automated field sweeps and data logging via the USB interface.
Features
Up to 11 KG magnetic field, continuously variable 75 mm air-gap
USB interface with DACC + CAMM Windows software
See the brochure for full specifications, regulation figures and accessories
